Overview

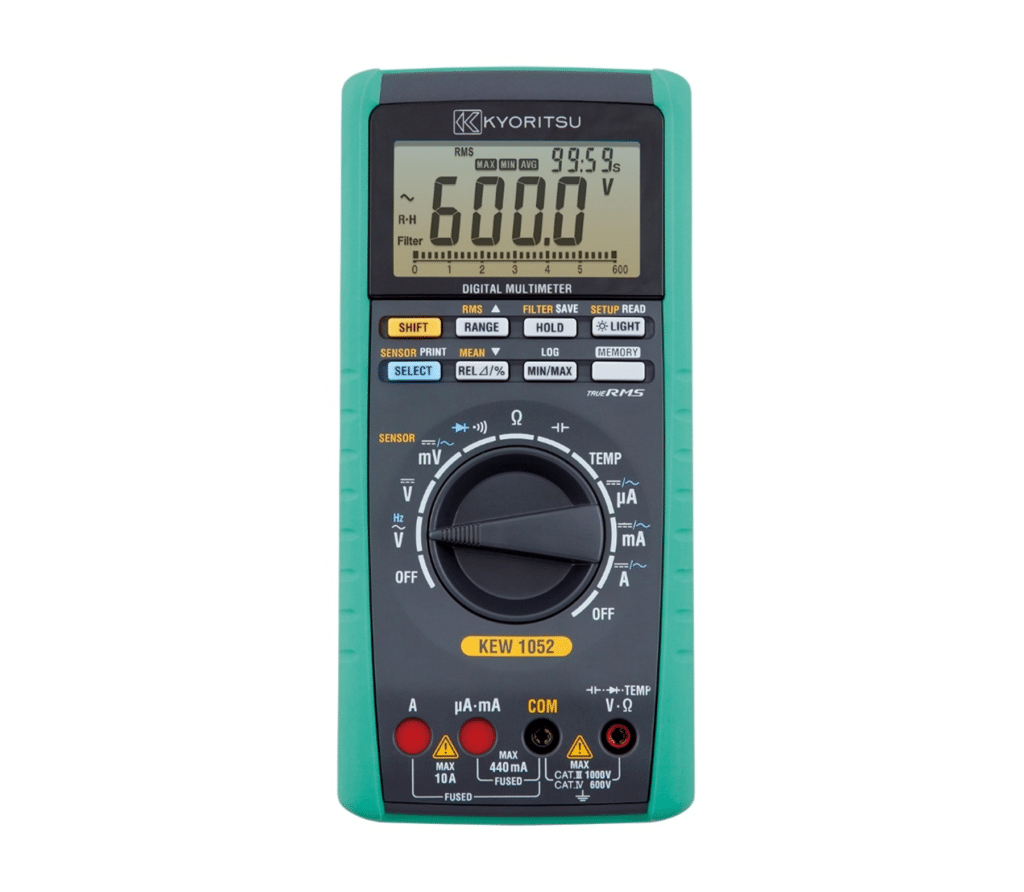

The KEW1052 is a specialist high performance DMM with advanced safety features and comprehensive support for data management.

High Accuracy, High Performance and Reliable Measurements
• 0.09% basic DC accuracy
• Large display with 6,000 counts
• True-RMS Measurements

Safety design for industrial use
• Complies with IEC 61010-1 CAT IV 600V , CAT III 1000V
• Terminal shutter to prevent incorrect test leads’ insertion in current terminals
• Very wide operating temperature range from -10 to 55ºC

Reliable support for data management
• Large data internal memory 1,600 data (logging), 100 data (manual)

Key Benefits

  • True RMS measurements
  • True RMS or MEAN value detection mode can be selected
  • 0.09% basic DC accuracy
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals
  • Very wide operating temperature range from -10 to 55ºC
  • Large data internal memory 1,600 data (logging), 100 data (manual)
  • User calibration function
  • CAT. IV 600V / CAT. III 1000V
  • Complies with IEC61010-1
  • Auto off and backlit display

Key Features

  • True RMS measurements
  • Measures AC/DC current up to 10A
  • Measures AC/DC voltage up to 1000V
  • Temperature measurement ('K' type probe included) -50ºC to 600ºC
  • Auto hold
  • Diode test feature
  • Duty function
  • Capacitance measurement
  • Frequency measurement
  • Continuity buzzer
  • Data hold memory function
  • Resistance measurement
  • Max/Min/Average value
  • Display: 6000 counts
