Overview

The KT64DL Multifunction Tester has the feature set to test domestic and commercial installations and has a well-earned reputation for reliability, repeatability and ruggedness.

Kewtech’s loop circuits are all well designed to overcome noise, RCD uplift and contact resistance and the KT64DL is no exception.

The KT64DL is now a discontinued model but can still be purchased from a number of wholesalers and Kewtech distributors. The superseding model is the KT63PLUS.

Key Benefits

  • Easy to use with straight forward interface
  • Best loop performance accuracy when benchmarked against other brands
  • Auto RCD tests with all results on one screen
  • No Bangs - continuous live monitoring means no blown fuses or PCBs
  • Advanced memory means that you can tag a measurement to a site, distribution board, circuit number and type of test - for instance was that loop test a Ze or Zs?
  • Anti-Trip Technology for full no trip Loop testing on all RCD types with very low susceptibility of RCD uplift and noise interference
  • Constant live voltage detection protects when dead testing

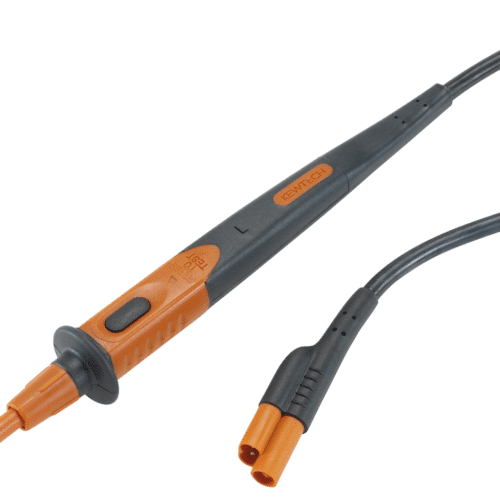

  • Test probe with remote test button as well as lockdown test button for ‘hands free’ testing
  • End of line calibration certificate

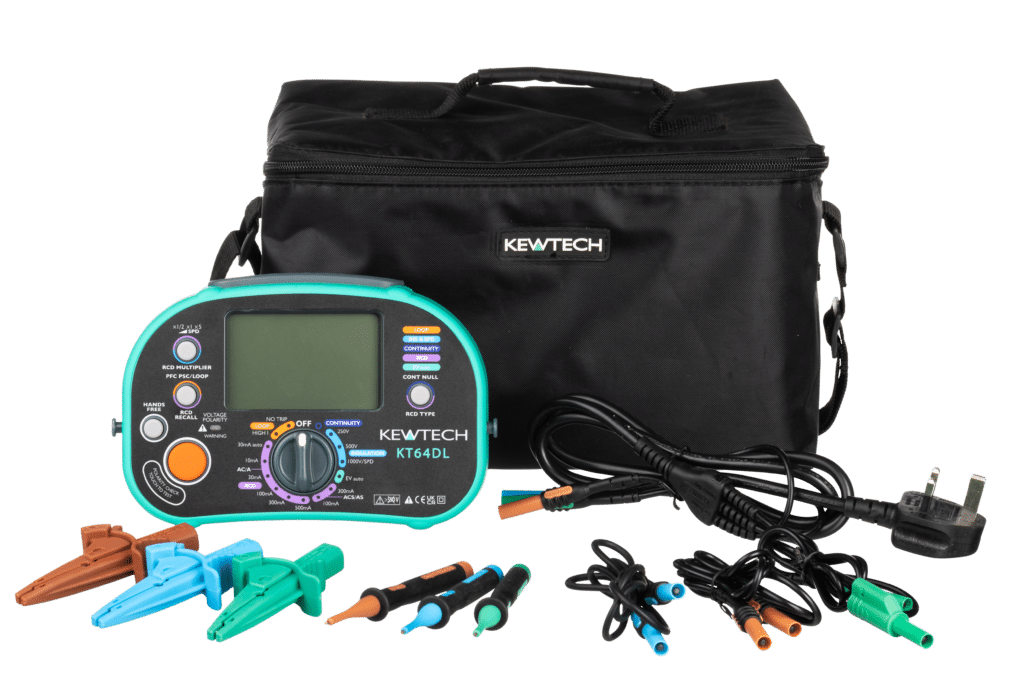

  • Comes in a soft carry case with mains lead, distribution board leads and remote test probe

Key Features

  • Continuity - switchable buzzer and auto null
  • Insulation - 250, 500 & 1000V with voltage warning LED
  • Loop - ATT (low current), high current 0.01 ohm resolution
  • Phase to phase loop test
  • Easy PFC & PSC measurement with clear indication of what is being tested
  • RCD - Type AC, A, ACS, AS, auto & ramp at 10, 30, 100, 300 & 500mA
  • Auto-test memory for RCD testing with all results shown on one screen, so no scrolling
  • Phase Rotation
  • Memory for test lead resistance compensation
  • Polarity check
