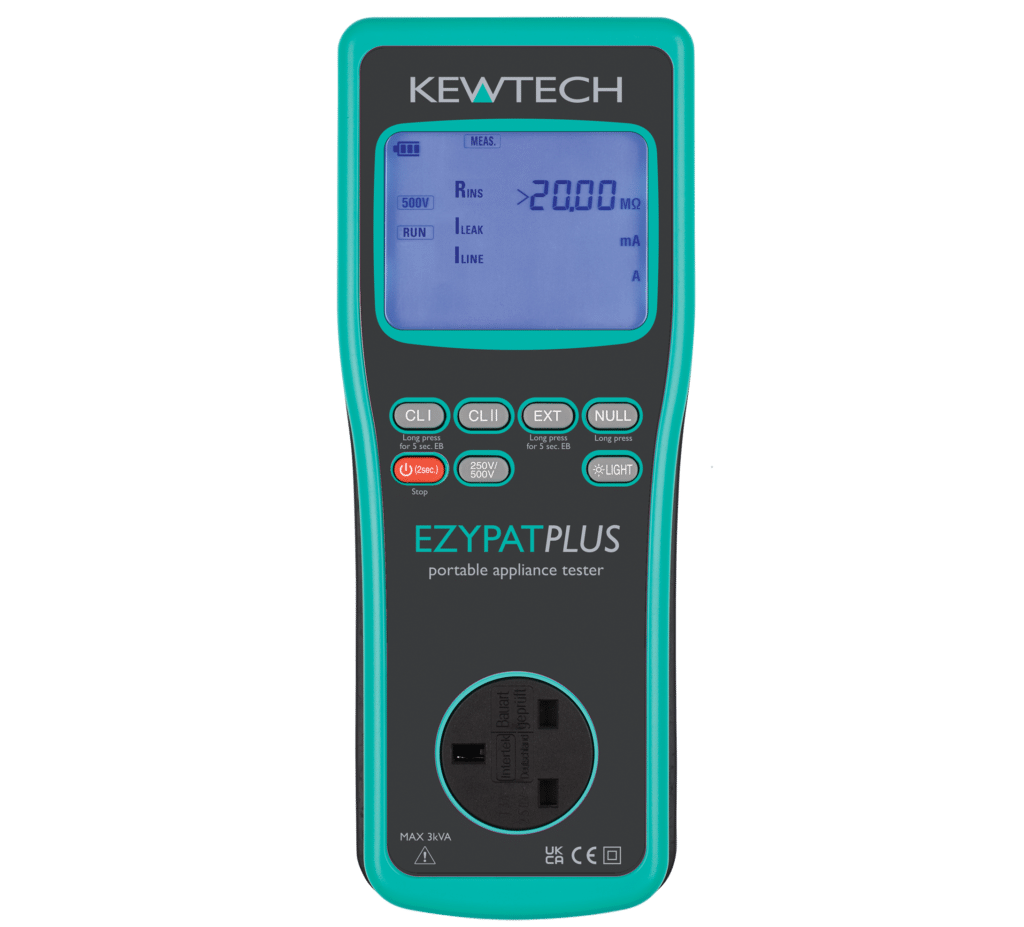

The EZYPAT PLUS is an advanced manual PAT tester which allows for 230V and 110V run leakage tests, a unique feature in the battery powered market to the EZYPAT PLUS and SMARTPAT.

This lightweight battery-operated tester has automatic test sequences designed to make PAT testing simpler and more efficient allowing you to get through your workload faster.

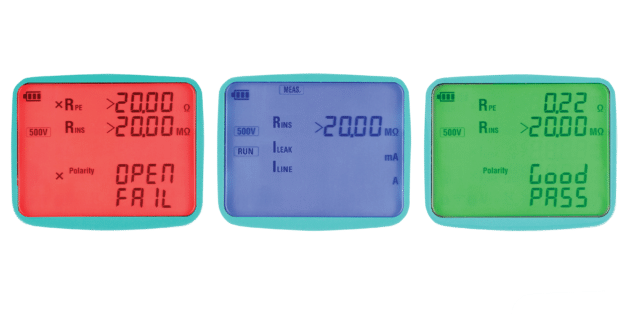

The EZYPAT PLUS is an easy-to-use tester which displays a flashing green screen indicating a pass and a red screen to indicating a fail. As well as running a Class 1 or Class 2 appliance test, this tester offers tests on extension leads and has a simple facility to null your test leads.

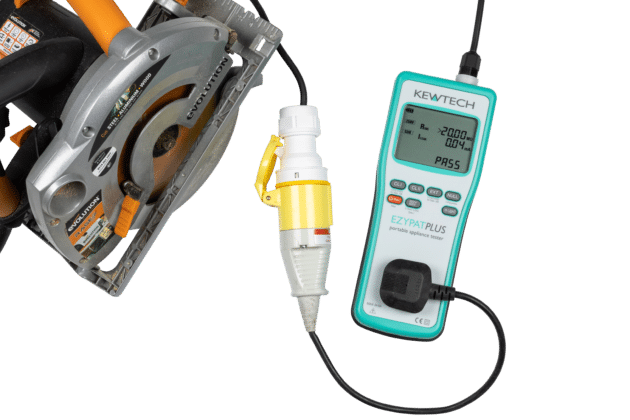

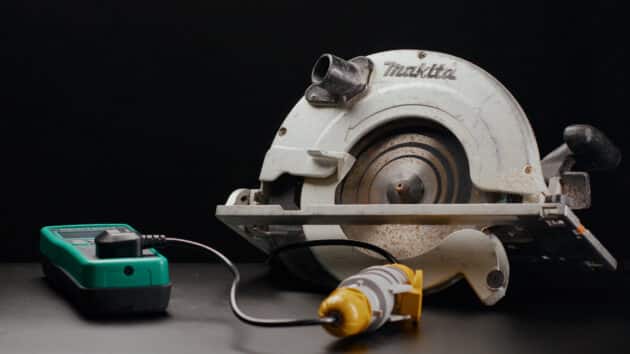

Performing a run test checks for correct working of the appliance and highlights any excessive leakage to earth. Having a 110V run leakage facility as well as 230V, the EZYPAT PLUS is the ideal tester for any construction site testing.

The EZYPAT PLUS is manually compatible with the KEWPAT app for all your record saving and reporting.


Key Benefits

  • Long battery life - over 1500 tests
  • Automatic test sequencing
  • Backlight display
  • FREE KEWPAT App for manual data logging, product register and reporting
  • Optional KEW80L Bluetooth printer for label printing is available
  • Optional 110V adapters for 110V testing is available

Key Features

  • PASS / FAIL - GREEN / RED screen indication
  • Appliance status pre-check
  • Quick check and 5 second continuity options
  • IT Safe - 500V and 250V insulation test options
  • 230V and 110V run leakage test options
  • Substitute leakage
  • Extension lead test
  • Fast and easy test lead null
